2 Player 24" Upright Arcade Cabinet Flat Pack Kit - Black

2 Player 24" Upright Arcade Cabinet Flat Pack Kit - Black

SKU: EH-2P-24-UR-BK-1
£389.00 GBP
£389.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Manufactured to order with approx. 10 working days lead time

Low stock

Control Panel Plexi
 More payment options

  • The kit is built in two sections (top and bottom), and joined to form a full size upright using very strong internal metal bracket plates.
  • Removable control panel for easy access to arcade components
  • Internal shelf to store hardware components
  • Adjustable monitor VESA mount bracket, made from MDF. Monitor bolts included
  • Supplied with 4mm thick polycarbonate plexi for marquee and monitor area
  • Pre-cut cut hole at back for inlet power switch (not included)
  • All assembly fixings and instruction manual included for self assembly
  • Joystick bolts are included
  • Suitable for various arcade components, including JAMMA and Raspberry Pi
  • Compatible with a 24" monitor
  • Popular buttons such as Sanwa and Seimitsu can be installed
  • Joysticks such as Sanwa and Seimitsu are compatible
  • Supplied in a flat pack form for easy self assembly
  • The sides, top panel, speaker panel and control panel are 18mm, other panels are 12mm. Once built the 12mm is not noticeable and does not affect rigidity in any way.

Carcass Material: 18mm Black MDF & 12mm MDF
Acrylic Screen Cover: Clear Solid Polycarbonate Sheet
600 (W) x 614 (L) x 4 (D) mm
Acrylic Marquee: Clear Solid Polycarbonate Sheet
110 (W) x 590 (L) x 4 (D) mm
Number of Players: 2 Player
Assembled Dimensions: 1685 (H) x 645 (W) x 600 (D) mm
Control Panel Dimensions: 936 (H from floor) x 587 (W) x 204 (D) mm
Required to Assemble: 2 Persons
Philips Screwdriver
Adjustable Spanner
3mm Allen Key
5mm Drill Bit and Drill
Monitor Compatibility: Compatible with VESA 75mm and 100mm square hole configuration, and 200mm x 100mm.
Accommodates monitors up to a 24" size with the following maximum dimensions:
590 mm (H) – Maximum OUTER width
590 mm (W) – Maximum OUTER height
Joystick Compitability: Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks. This kit IS NOT compatible with ServoStik joysticks.
Button Compatibility: Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated.
Power Supply Compatibility: There is a hole located in the lower back panel to accommodate an inlet switch socket if required. Alternatively, cables can be fed through this hole.
Number of Player Joystick and Button Holes: 2 x Joystick holes (1 x per player)
12 x Player Button holes (6 x per player)
4 x Action/Admin Button holes (2 x per player)
Speaker Compatibility: The speaker holes are designed to fit a speak with mounting holes 75mm apart or bigger.
T-Molding Compatibility: You will require 25ft (7.5m) of T-Molding to complete the arcade kit.
If you want to add T-molding to the back, you will require an additional 13ft (3.9m)
If you would like to add T-molding to underneath the sides, you will require an additional 4ft (1m)
Package Dimensions: 1020 (L) x 700 (W) x 150 (H) mm / 24kg
1020 (L) x 700 (W) x 150 (H) mm / 24kg
Package Weight: 48kg

View full details

Description

2 Player 24" Upright Arcade Cabinet Flat Pack Kit - Black

This full size 24 Inch 2 player upright arcade cabinet kit is manufactured from 18mm and 12mm melamine faced MDF, and precision cut on a commercial CNC machine. The upright arcade cabinet is in a flat pack kit form, with detailed assembly instructions showing you step-by-step how to build the cabinet. All necessary screws and fixings are provided for the assembly process. The upright arcade cabinet is able to accommodate a maximum monitor size of 24 inches. An adjustable wooden VESA mount with monitor bolts are included with the flat pack kit.

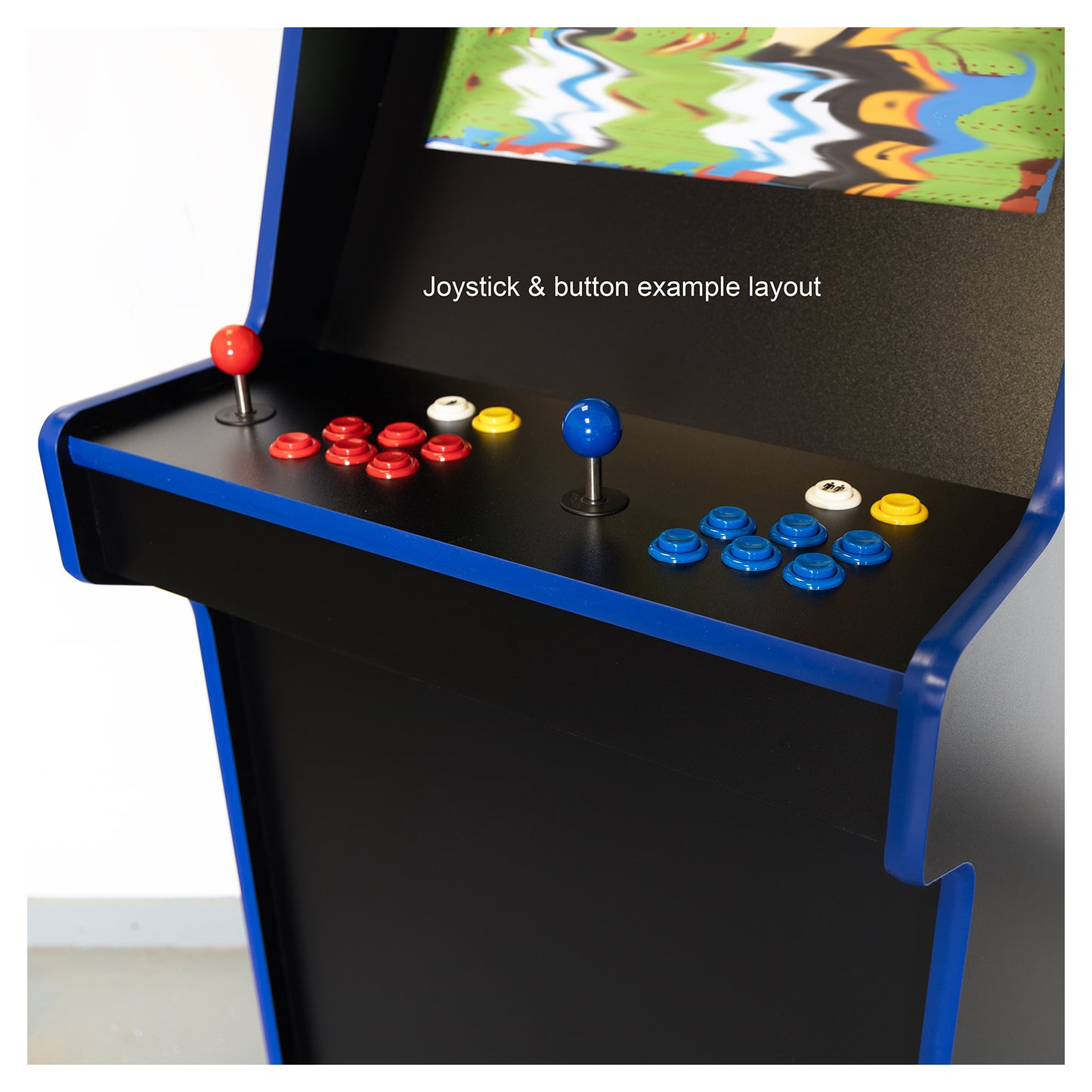

The removable control panel comes with the joystick and button holes pre-drilled for a 2 player layout. The button holes are 30mm in diameter, making the control panel compatible with many of the popular brands on the market, such as Seimitsu, Sanwa, Suzo, IL, Happ, and the classic arcade buttons.

The joystick holes are recessed under the control panel with screw inserts already added, this allows for the most popular joysticks on the market to be easily installed. Popular compatible joysticks including Sanwa, Seimitsu, SuzoHapp, Zippyy and IL. We have also included bolts for the joystick.

Each upright arcade kit has been pre-slotted 1/16” (1.58mm), that fits 3/4” (19mm) t-molding (t-molding not included).

This 24 inch upright flat pack arcade cabinet kit also comes supplied with a 4mm thick plexi for the marquee and the monitor area.

Control Panel Options:
The arcade kit can be purchased with or without a clear 4mm plexi to protect your artwork. Joystick and button holes are pre-cut.

You can also order this kit with a blank control panel or with a custom button layout. Leave a note in the customer comments section during checkout.

The control panel clips into place with a unique bracket system, allowing you to easily access the components and wiring underneath. There are no visible screws and bolts.
