2 Player 3/4 Size Upright Arcade Cabinet Flat Pack Kit - Black

2 Player 3/4 Size Upright Arcade Cabinet Flat Pack Kit - Black

SKU:
EAN:
Regular price £237.00 GBP
Regular price Sale price £237.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Manufactured to order with approx. 10 working days lead time

Low stock

Features

  • 3/4 size upright arcade cabinet kit
  • Ideal for kids or customers with limited space
  • Riser available to purchase separately
  • Low cost arcade cabinet kit
  • Supplied with 4mm plexi set for monitor and marquee area
  • All fixings and instruction sheet included for self assembly
  • Joystick bolts included
  • Suitable for various projects including JAMMA and Raspberry Pi
  • T-Molding slots pre-cut
  • Compatible with 20" monitors
  • Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks
  • Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated
  • Black finish
  • Supplied in flat pack form for self assembly

Specifications

Carcass Material: 12mm Black MDF
Acrylic Screen Cover: Clear Solid Polycarbonate Sheet
438 (H) x 453 (W) x 4 (D) mm
Acrylic Marquee: Clear Solid Polycarbonate Sheet
89 (H) x 453 (W) x 4 (D) mm
Number of Players: 2 Player

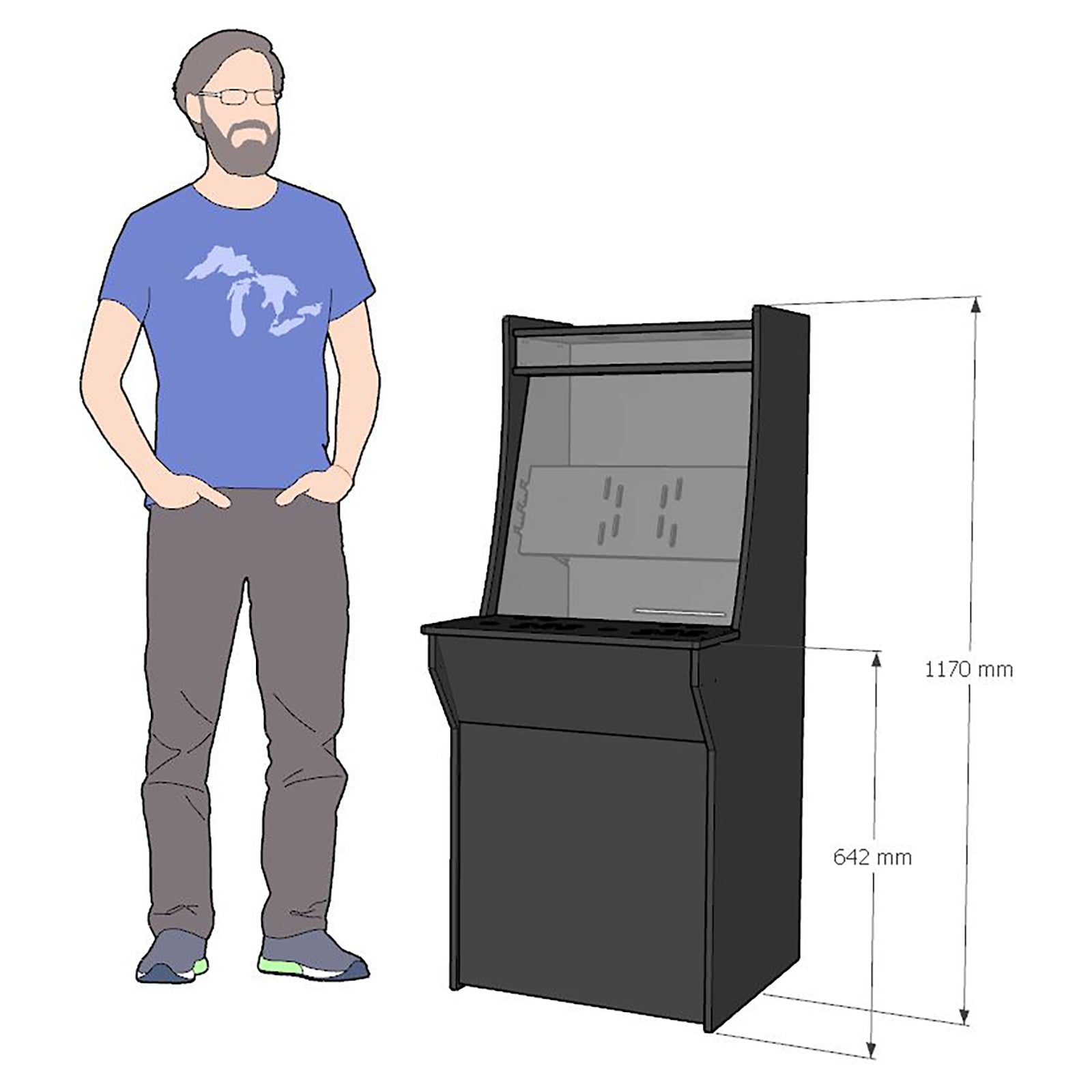

Assembled Dimensions: 1170 (H) x 467 (W) x 505 (D) mm
Required to Assemble: 2 Persons
Philips Screwdriver
Adjustable Spanner
3mm Allen Key
5mm Drill Bit and Drill
Monitor Compatibility: Compatible with VESA 75mm and 100mm square hole pattern.
Monitor / Screen Compatibility: Compatible with up to:
20” 5:4 ratio
18.5" 16:9 ratio
The above is for guidance only. We strongly recommend measuring the outer measurements of the monitor to ensure they do not exceed the following dimensions:
420 mm (H) – Maximum OUTER height
440 mm (W) – Maximum OUTER width
Joystick Compitability: Compatible with Zippyy, Sanwa, Seimitsu and others with SE mounting plates.
Button Compatibility: Compatible with 28mm and 30mm buttons, including Suzo Happ, Industrias Lorenzo Convex, Seimitsu, Samducksa and QanBa.
Power Supply Compatibility: There is a hole located in the lower back panel to accommodate an inlet switch socket if required. Alternatively, cables can be fed through this hole.
Number of Player Joystick and Button Holes: 2 x Joystick holes (1 x per person)
12 x Player Button holes (6 x per person)
4 x Action/Admin Button holes (2 x per person)
Speaker Compatibility: The speaker holes are designed to fit a speak with mounting holes 75mm apart or bigger.
T-Molding Compatibility: Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. We recommend purchasing 21ft (6.5m) of T-Molding to complete the Arcade Kit.
Package Dimensions: 160 (H) x 1240 (L) x 660 (W) mm
Package Weight: 23kg

View full details

Description

2 Player 3/4 Size Upright Arcade Cabinet Flat Pack Kit - Black

This 3/4 size upright arcade cabinet kit is manufactured from 12mm MDF and is just under 4ft tall when assembled, so ideal for kids or anyone that wants a smaller form factor arcade cabinet. A riser stand is also available to purchase separately, which will raise the height by approx. 30cm.

This 3/4 size upright arcade cabinet kit features a black finish, 2 player pre-drilled control panel layout, internal shelf to store hardware components and includes a plexi set for monitor and marquee area. The monitor viewing area provides ample room for a monitor of up to 20” (5:4 ratio) or 18.5” (16:9 ratio) and there is also a pre-cut hole in the back of the cabinet for those customers who want to fit an inlet switch. This 3/4 size arcade cabinet kit is supplied in flat pack form for self assembly and all fixings are included.

Pre-Drilled Plexi For Control Panel Option:
This kit is available to order with or without a pre-drilled plexi for the control panel. The clear plexi is a good option to choose, when you intend to put artwork underneath. This can be selected from the options above when ordering.

Riser Option:
This kit is available to order with or without a riser, which raises the height of the cabinet by 30cm.
