2 Player 32" Upright Arcade Cabinet Flat Pack Kit - Black

2 Player 32" Upright Arcade Cabinet Flat Pack Kit - Black

Regular price £474.00 GBP
Regular price Sale price £474.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

Low stock

Control Panel Plexi
Hole for U-Trak Trackball

Features

  • Full size upright arcade cabinet kit
  • The kit is built in two sections and joined to form a full size upright
  • The sides, top panel, speaker panel and control panel are 18mm, other panels are 12mm. Once built the 12mm is not noticeable and does not affect rigidity in any way
  • Features a removable control panel for easy access to joysticks/buttons/wiring
  • Adjustable MDF VESA mount bracket and bolts included
  • Supplied with 4mm plexi set for monitor and marquee area
  • All fixings and instruction sheet included for self assembly
  • Joystick bolts included
  • Suitable for various projects including JAMMA and Raspberry Pi
  • T-Molding slots pre-cut
  • Compatible with 32" monitors
  • Most popular joysticks will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Zippyy and illuminated joysticks
  • Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated
  • Black finish
  • Supplied in flat pack form for self assembly

Specifications

Carcass Material: 18mm Black MDF & 12mm MDF
Acrylic Screen Cover: Clear Solid Polycarbonate Sheet
4 (D) mm
Acrylic Marquee: Clear Solid Polycarbonate Sheet
4 (D) mm
Number of Players: 2 Player
Assembled Dimensions: 800 (W) x 600 (D) x 1685 (H) mm
Control Panel Dimensions: 815 (W) x 230 (D) x 960 (H from floor) mm
Number of Components: 23 flat packed items
Accessory Components: 52 x Modesty Blocks 74 x M4x20mm Woodscrews
90 x M4x25mm Woodscrews
8 x M5x16mm Hex Socket Bolts & Nuts (Joystick)
4 x M5x25mm Hex Socket Bolts (Control Panel)
4 x M4x30mm Machine Pozi Pan Head Bolts & Washers (monitor fixings)
2 x M25x30mm Machine Pozi Pan Head Bolts, Nuts & Washers (Top and bottom panel fixings)
Required to Assemble: 2 Persons
Philips Screwdriver
Adjustable Spanner
3mm Allen Key
5mm Drill Bit and Drill
Monitor Compatibility: Compatible with VESA 75mm and 100mm square hole pattern, and 200mm x 100mm.
Monitor / Screen Compatibility: Compatible with up to a 24” monitor with the following maximum dimensions:
590 mm (H) – Maximum VIEWABLE height
790 mm (W) – Maximum OUTER width
Marquee - Maximum Size: 790 (W) x 4 (D) x 110 (H) mm
Joystick Compitability: Compatible with Zippyy, Sanwa, Seimitsu and others with SE mounting plates.
Button Compatibility: Compatible with 28mm and 30mm buttons, including Suzo Happ, Industrias Lorenzo Convex, Seimitsu, Samducksa and QanBa.
Trackball Compatibility: U-Trak Arcade Trackball
Power Supply Compatibility: There is a hole located in the lower back panel to accommodate an inlet switch socket if required. Alternatively, cables can be fed through this hole.
Number of Player Joystick and Button Holes: 2 x Joystick holes (1 x per person)
16 x Player Button holes (6 x per person)
4 x Action/Admin Button holes (2 x per person)
Speaker Compatibility: The speaker holes are designed to fit a speak with mounting holes 75mm apart or bigger.
T-Molding Compatibility: Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. We recommend purchasing 28ft (8.5m) of T-Molding to complete the Arcade Kit.
Package Dimensions: 1020 (L) x 800 (W) x 150 (H) mm / 27kg
1020 (L) x 700 (W) x 150 (H) mm / 30kg
1020 (L) x 700 (W) x 150 (H) mm / 30kg
Package Weight: 60kg

View full details

Description

2 Player 32" Upright Arcade Cabinet Flat Pack Kit - Black

This full size 32" upright arcade cabinet kit is manufactured with 18mm & 12mm MDF, features a black finish, 2 player pre-drilled control panel layout, internal shelf to store hardware components and includes a plexi set for monitor and marquee area. The monitor viewing area provides ample room for a monitor of up to 32” (with a maximum outer width of 76cm) and there is also a pre-cut hole in the back of the cabinet for those customers who want to fit an inlet switch. This upright arcade cabinet kit is supplied in flat pack form for self assembly and all fixings are included.

Pre-Drilled Plexi For Control Panel Option:
This kit is available to order with or without a pre-drilled plexi for the control panel. The clear plexi is a good option to choose, when you intend to put artwork underneath. This can be selected from the options above when ordering.

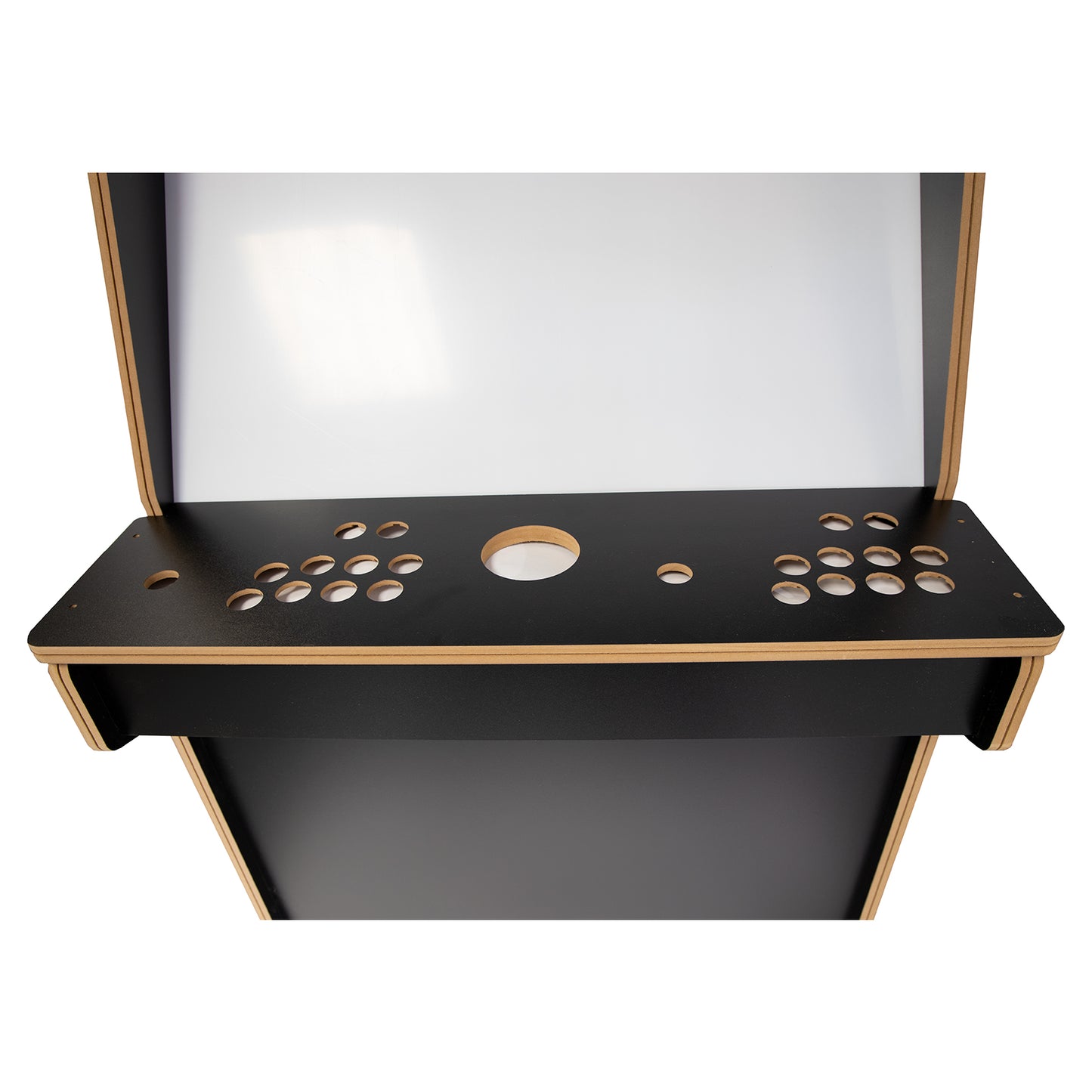

Control Panel Options:
You can choose to have the control panel cut with a hole for a U-Trak Trackball if required. Many games use a trackball and it is a nice addition to a completed cabinet.
