27" Pinball Cabinet Flat Pack Kit - Black

27" Pinball Cabinet Flat Pack Kit - Black

SKU:
EAN:
£306.00 GBP
£306.00 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.
  • Free Delivery
  • Manufactured to order with approx. 10 working days lead time

Low stock

Features

  • Flat pack pinball arcade cabinet kit
  • Plexi set included
  • Can be placed on legs (Legs not included)
  • All fixings and instruction sheet included
  • T-Molding slots pre-cut
  • Compatible with VESA monitors up to 27"
  • Most popular arcade buttons will fit, including Sanwa, Seimitsu, SuzoHapp, IL, Gold Leaf and illuminated
  • Black finish
  • Supplied in flat pack form for self assembly

Specifications

Carcass Material: 18mm Black MDF
Acrylic Screen Cover: Clear Solid Polycarbonate Sheet
4 mm (D)
Number of Players: 1 Player
Assembled Dimensions: 870mm (overall height excluding legs)

913 (H) x 543 (W) x 415 (D) mm

Main Body - 346 (H) x 480 (W) x 900 (L) mm

Main Body and Back Box - 870 (H) x 598 (W) x 900 (L) mm
Required to Assemble: 2 Persons
Philips Screwdriver
Adjustable Spanner
3mm and 5mm Drill Bit and Drill
Monitor Compatibility: Compatible with VESA 75mm and 100mm square hole pattern and 200mm x 100mm (playfield only).
Monitor / Screen Compatibility: Playfield: Compatible with up to a 27” monitor with the following maximum dimensions:
700 mm (L) – Maximum OUTER length 442 mm (W) – Maximum OUTER width

Backbox: Compatible with up to a 22” monitor with the following maximum dimensions:
560 mm (W) – Maximum OUTER width 330 mm (H) – Maximum OUTER height
DMD Compatibility: The viewable area is 120mm (H) x 340mm (W) This can be adjusted or removed if requested.
Button Compatibility: Compatible with 28mm and 30mm buttons, including Suzo Happ, Industrias Lorenzo Convex, Seimitsu, Samducksa and QanBa.
Power Supply Compatibility: There is a hole located to the rear of the Pincab Base Panel to accommodate an inlet switch socket if required. Alternatively, cables can be fed through this hole.
Number of Player Joystick and Button Holes: 6 x Player Button holes (2 x per person)
1 x Release /Start Button hole
4 x Option / Navigation Button holes
Speaker Compatibility: The speaker holes are designed to fit a speak with mounting holes 75mm apart or bigger.
T-Molding Compatibility: Compatible with 3/4” (19mm) T-Molding, that fits a 1/16” (1.58mm) slot. We recommend purchasing 20ft (6m) of T-Molding to complete the Arcade Kit.
Package Dimensions: 1050 (L) x 650 (W) x 210 (H) mm
Package Weight: 35kg

View full details

Description

27" Pinball Cabinet Flat Pack Kit - Black

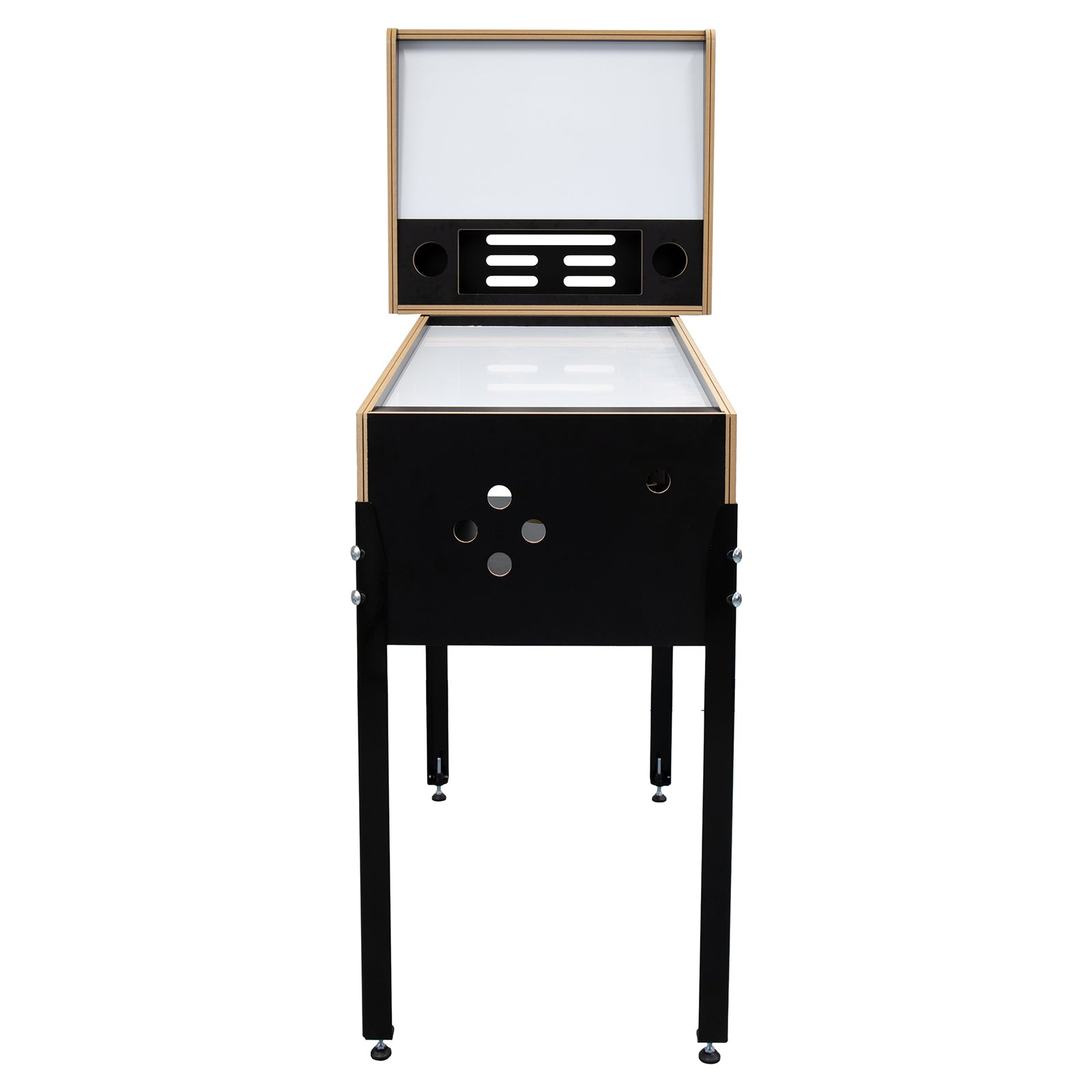

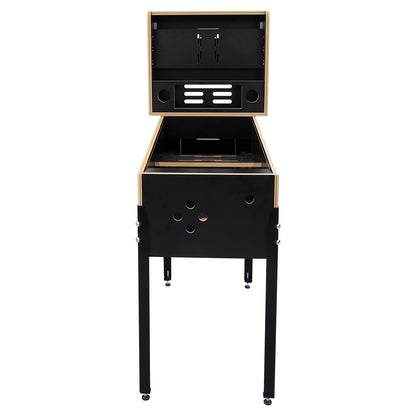

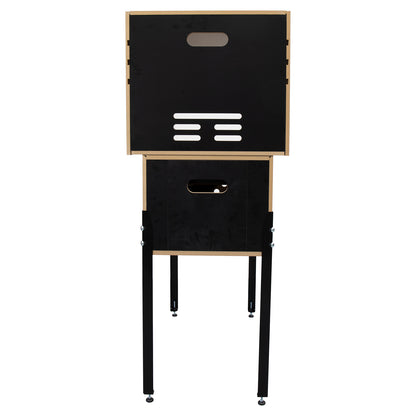

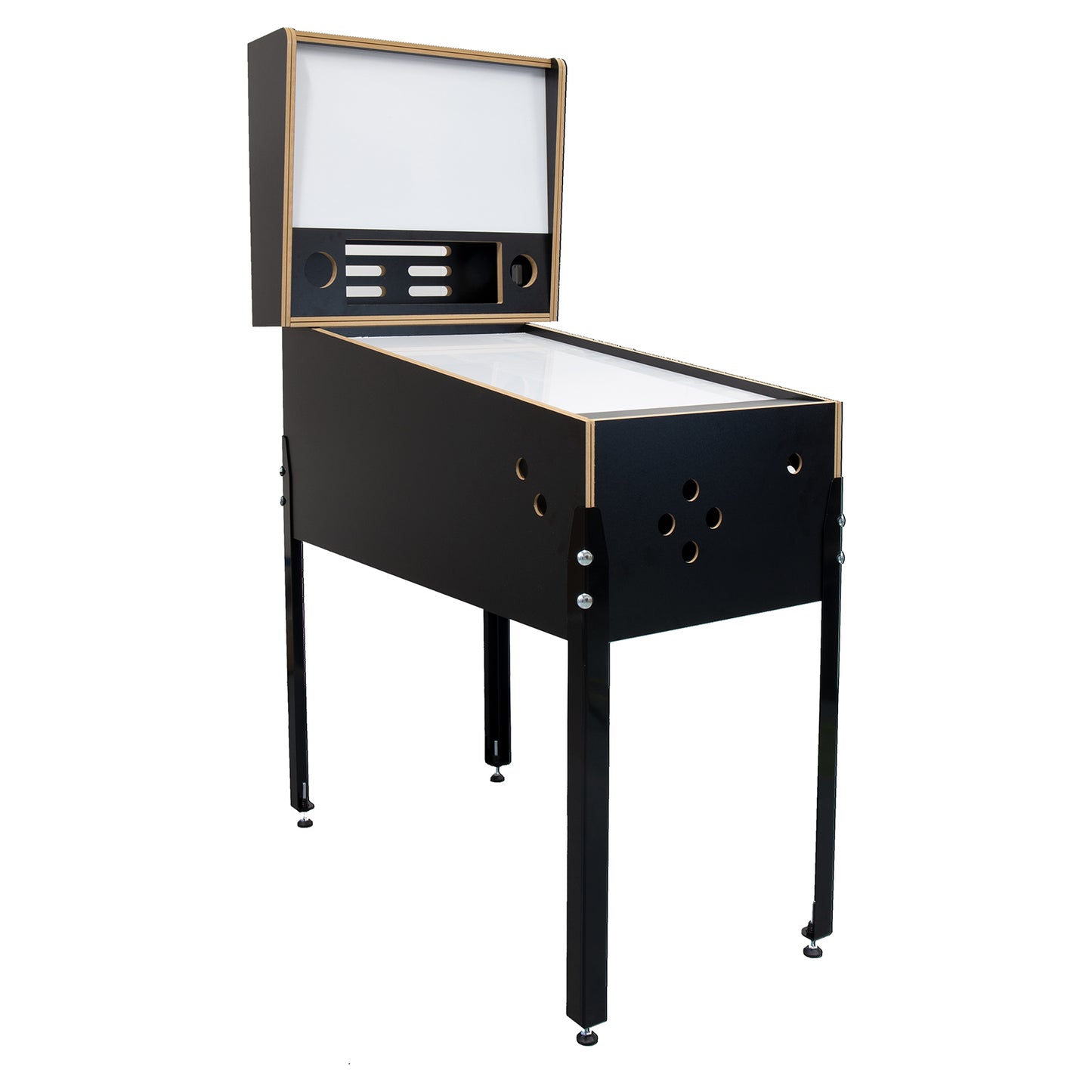

Please Note: The legs shown in the images are NOT INCLUDED in this kit. They are for illustration purposes only to show how the cabinet can look when placed on legs.

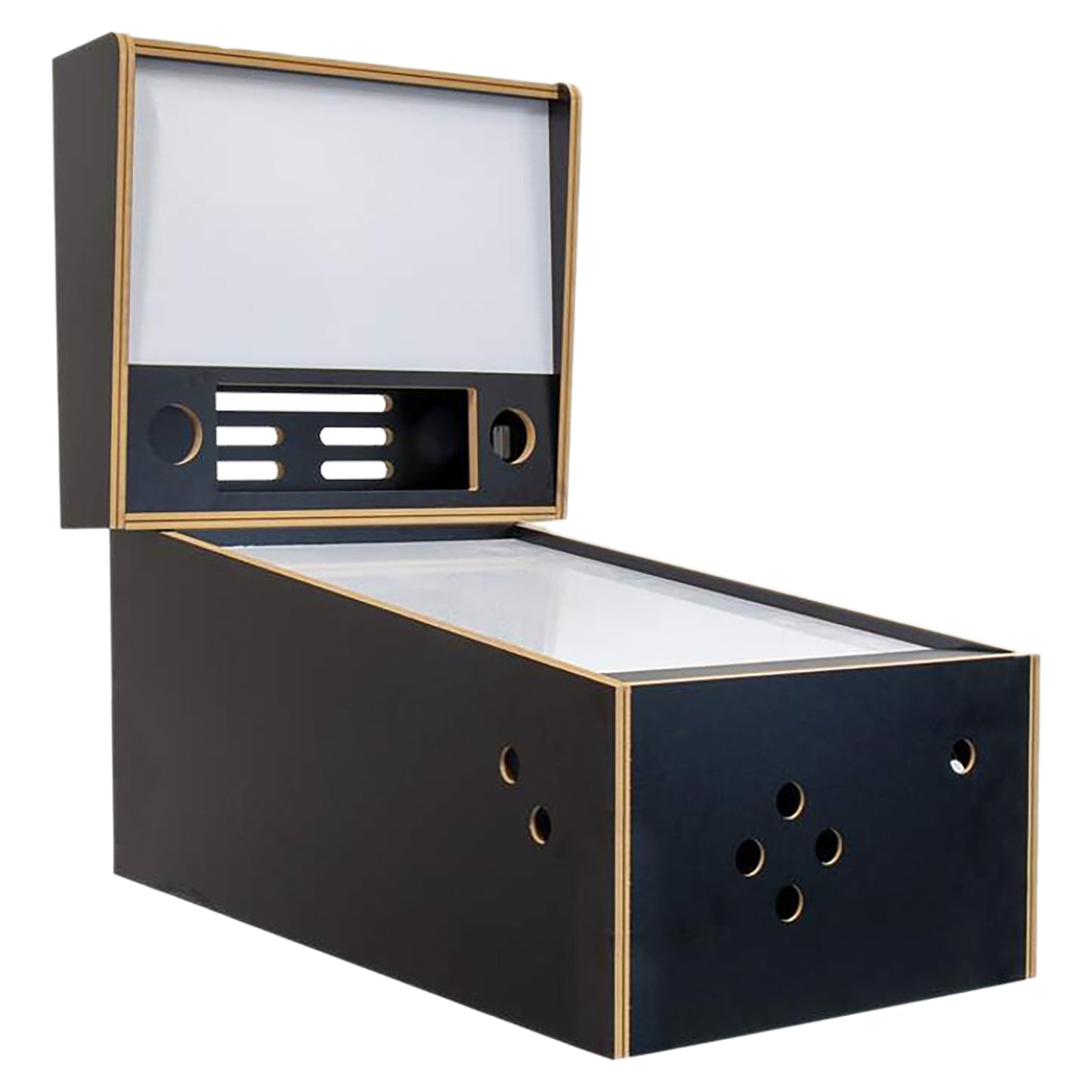

This flat pack pinball arcade cabinet kit is manufactured from 18mm MDF, features a black MDF finish and includes a plexi set for playing area and DMD area. The monitor play field area provides ample room for a monitor of up to 27” and there is also a pre-cut hole in the back of the cabinet for those customers who want to fit an inlet switch. This pinball cabinet kit is supplied in flat pack form for self assembly and all fixings are included. If you have ever dreamed of owning a pinball machine but the price has always been too high, you can now achieve your dream by building your own!

Additional Notes: There are two 10cm holes cut out on the base of the cabinet. These are for ventilation and can be left open or fitted with a fan as required.
