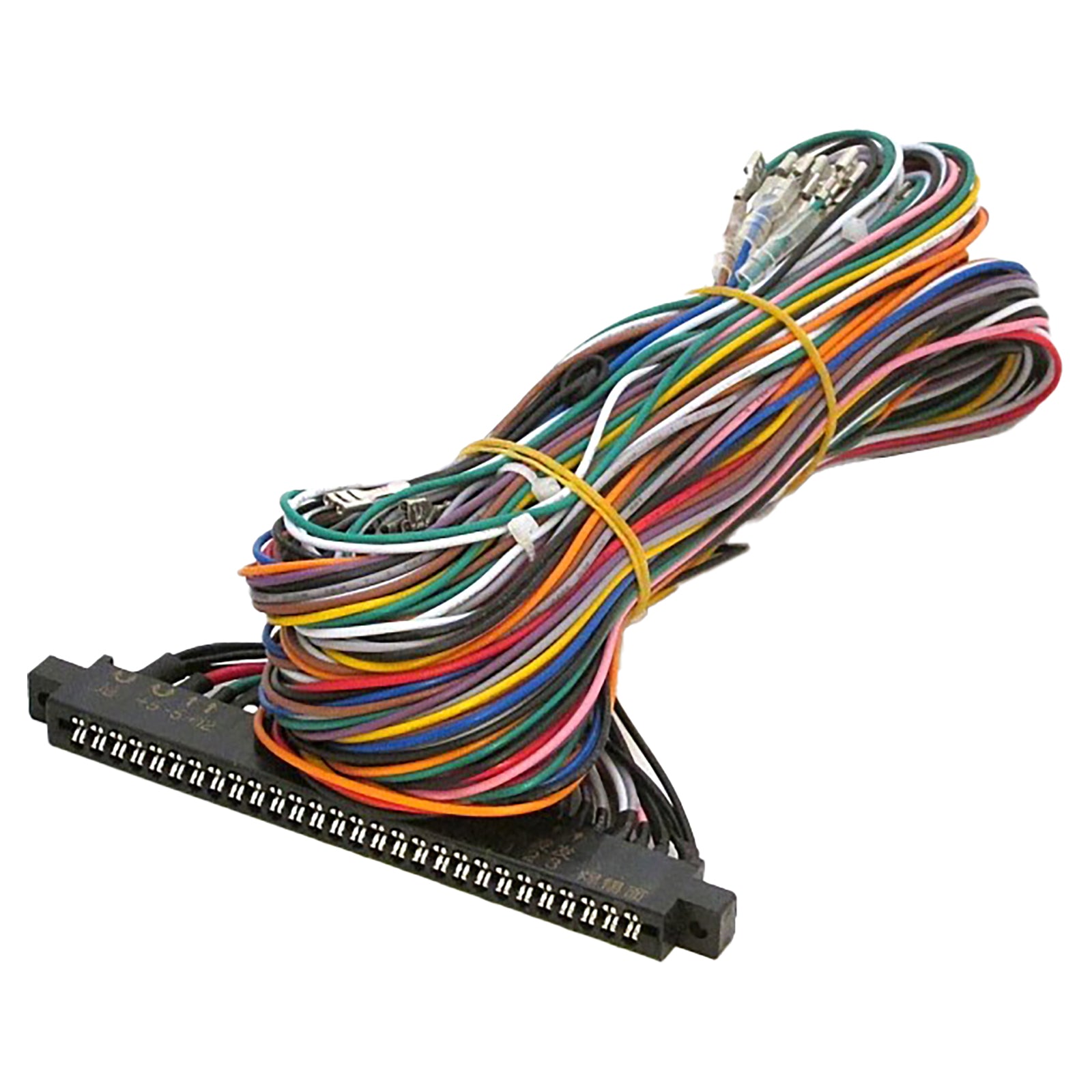

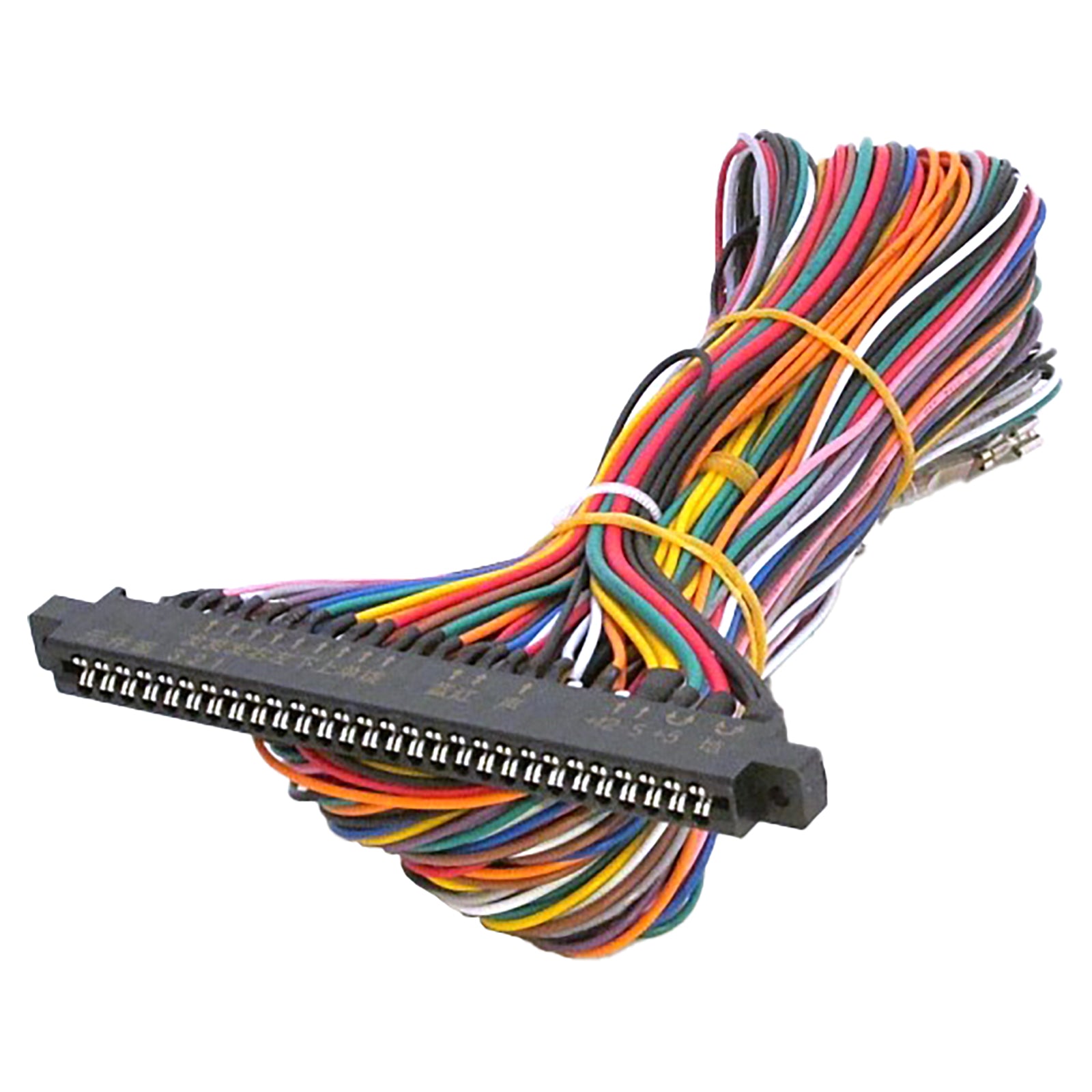

6 Button Arcade JAMMA Harness with 4.8mm Crimps (56 Pin)

6 Button Arcade JAMMA Harness with 4.8mm Crimps (56 Pin)

Regular price £9.99 GBP
Regular price Sale price £9.99 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Features

  • 28 pins on each side of the JAMMA harness (56pins total)
  • 4.8mm / .187" crimped terminals for quick hookup to buttons and joysticks
  • Insulated terminal covers
  • Terminal forks for all voltages (+5VDC, +12VDC, GND)

Specifications

Number of Players: 2
Buttons: 6 Per Player
Coin Mech Wiring: Included
Terminals: 4.8mm
Voltage: +12V / +5V / -5V

View full details

Description

6 Button Arcade JAMMA Harness with 4.8mm Crimps (56 Pin)

This JAMMA harness comes complete with 4.8mm / .187" crimped terminals and is ideal as a replacement for an existing JAMMA arcade machine or to use in a new JAMMA based arcade project. This JAMMA harness is also idea for multi-game boards such as Pandora's Box, Game Elf etc...

This JAMMA harness is wired for 6 buttons per player and comes with coin counter wiring. It comes with edge connector, push button lugs, power lead, RGB monitor cable. Also includes extra button loom and connectors for all parts of your JAMMA connection to power supply with attached terminal forks for all voltages (+5VDC, +12VDC, GND).


Function
Wire Color
Pin
Wire Color
Function
SOLDER SIDE

  COMPONENT SIDE
Ground
Black
1
Black
Ground
Ground
Black
2
Black
Ground
+5 VDC
Red
3
Red
+5 VDC
+5 VDC
Red
4
Red
+5 VDC
–5 VDC
Green
5
Green
–5 VDC
+12 VDC
Yellow
6
Yellow
+12 VDC
Key Slot
7
  Key Slot
Coin Counter 2
Orange
8
Orange
Coin Counter 1

9

Speaker
White
10
White
Speaker
P2 – Button 6 (19in1 Only)
Black
11
Black
P1 – Button 6 (19in1 Only)
Video – Green
Green
12
Red
Video – Red
Video – Vertical Sync
White
13
Blue
Video – Blue
Service Switch
Red
14
Black
Video – Ground

15
Orange
Test Switch
Coin 2
Green
16
Green
Coin 1
P2 – Start
Brown
17
Brown
P1 – Start
P2 – Up
Red
18
Red
P1 – Up
P2 – Down
Orange
19
Orange
P1 – Down
P2 – Left
Yellow
20
Yellow
P1 – Left
P2 – Right
Green
21
Green
P1 – Right
P2 – Button 1
Blue
22
Blue
P1 – Button 1
P2 – Button 2
Violet
23
Violet
P1 – Button 2
P2 – Button 3
Grey
24
Grey
P1 – Button 3
P2 – Button 4
White
25
White
P1 – Button 4
P2 – Button 5
Pink
26
Pink
P1 – Button 5
P2 – Button 6
Black
27
Black
P1 – Button 6
Ground
Black
28
Black
Ground
