Description

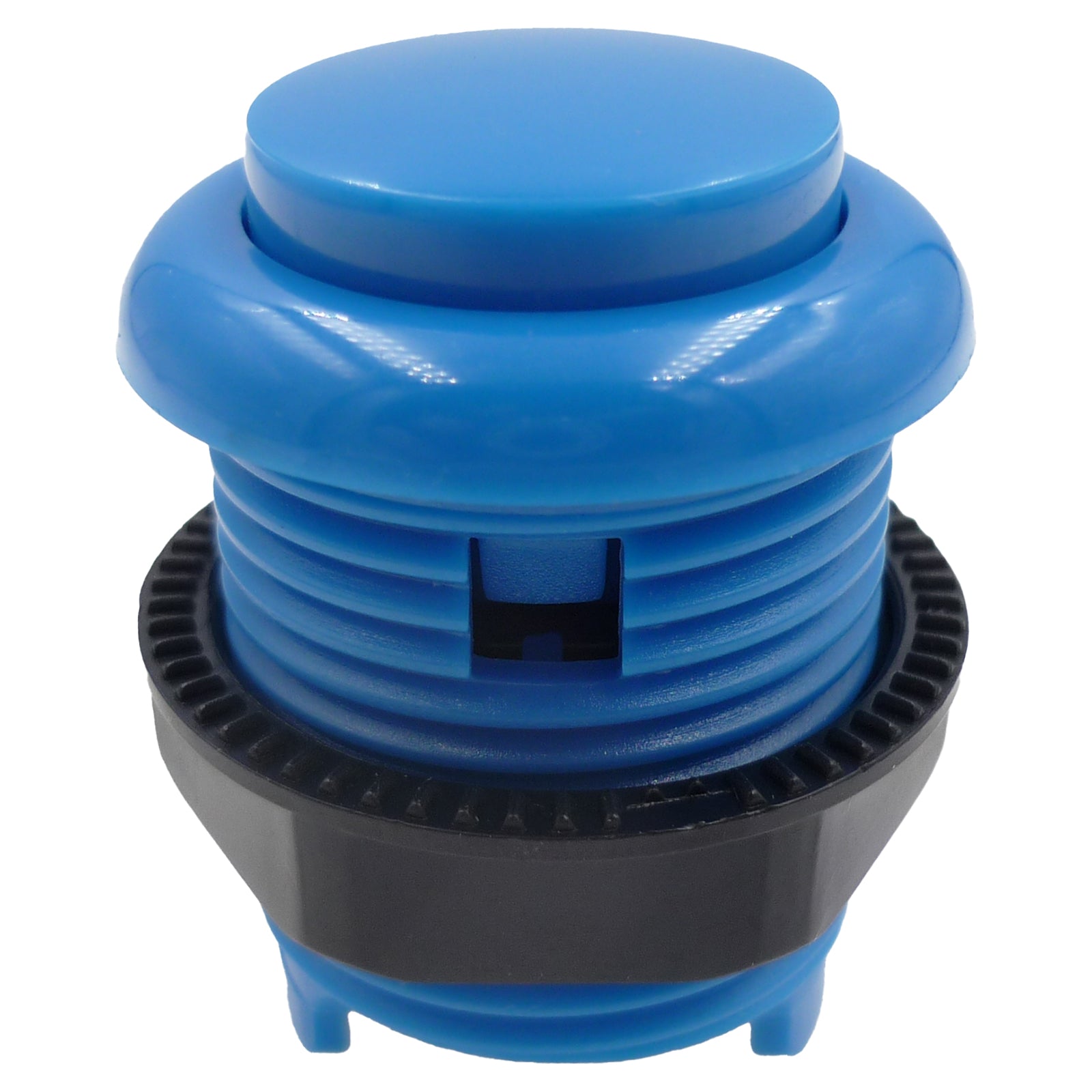

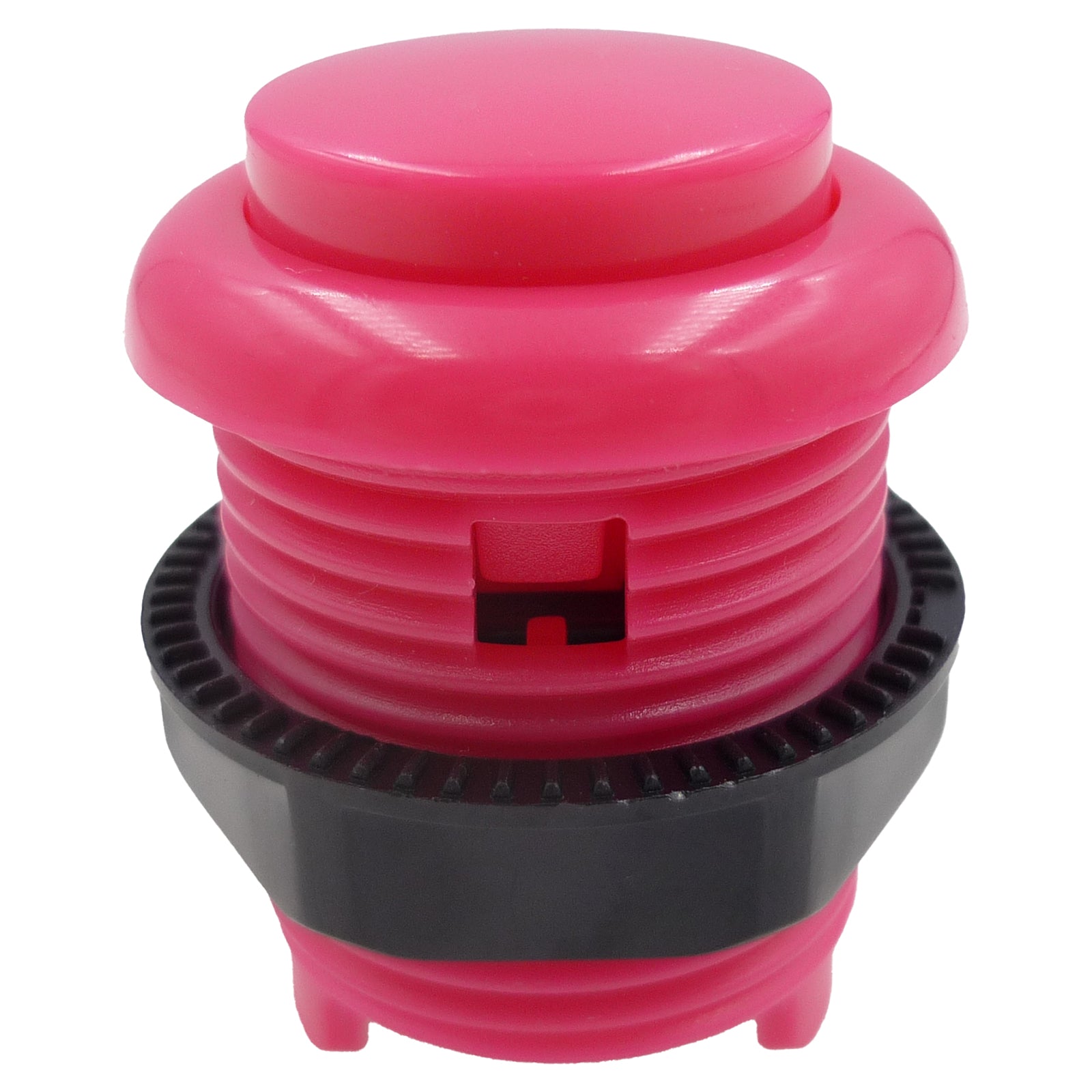

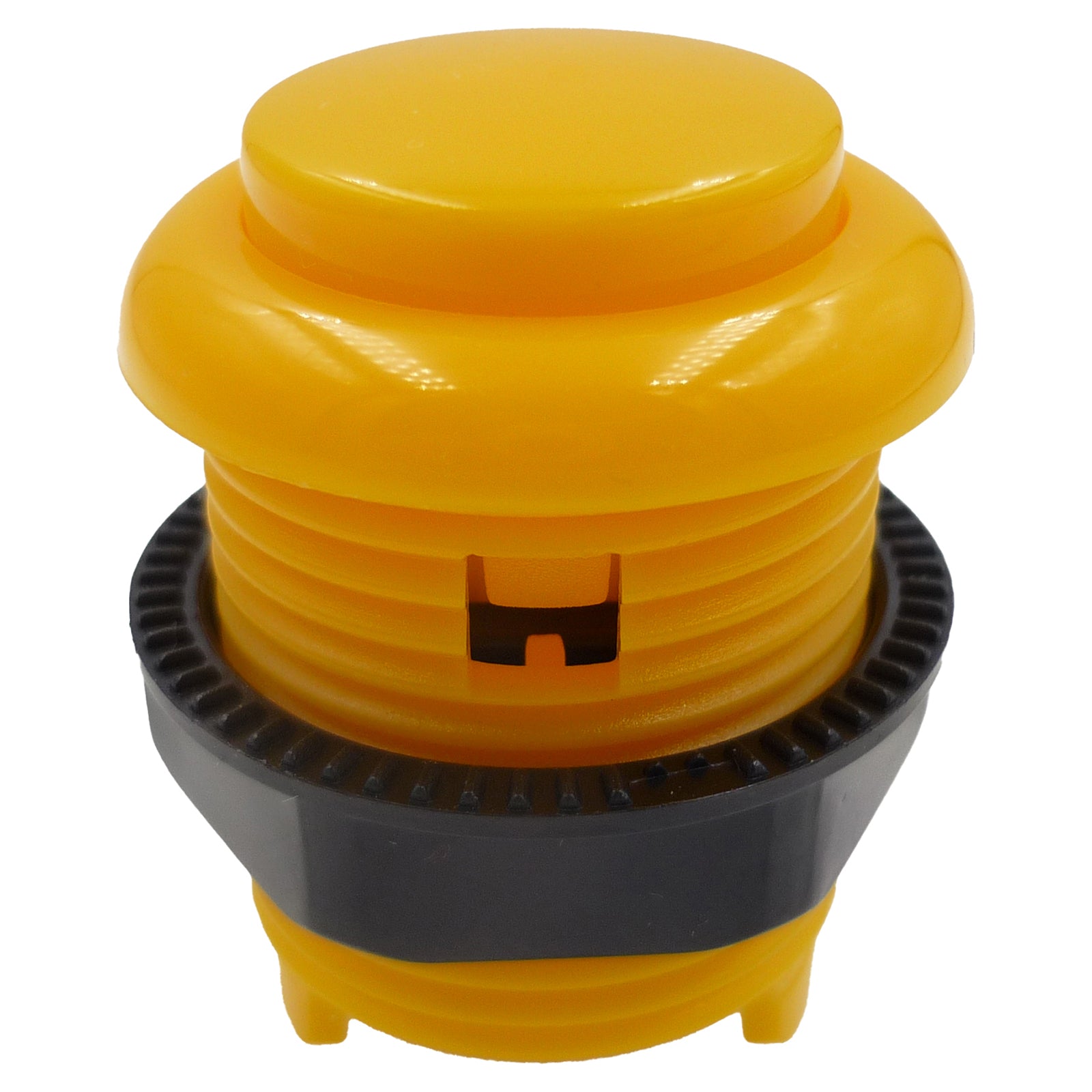

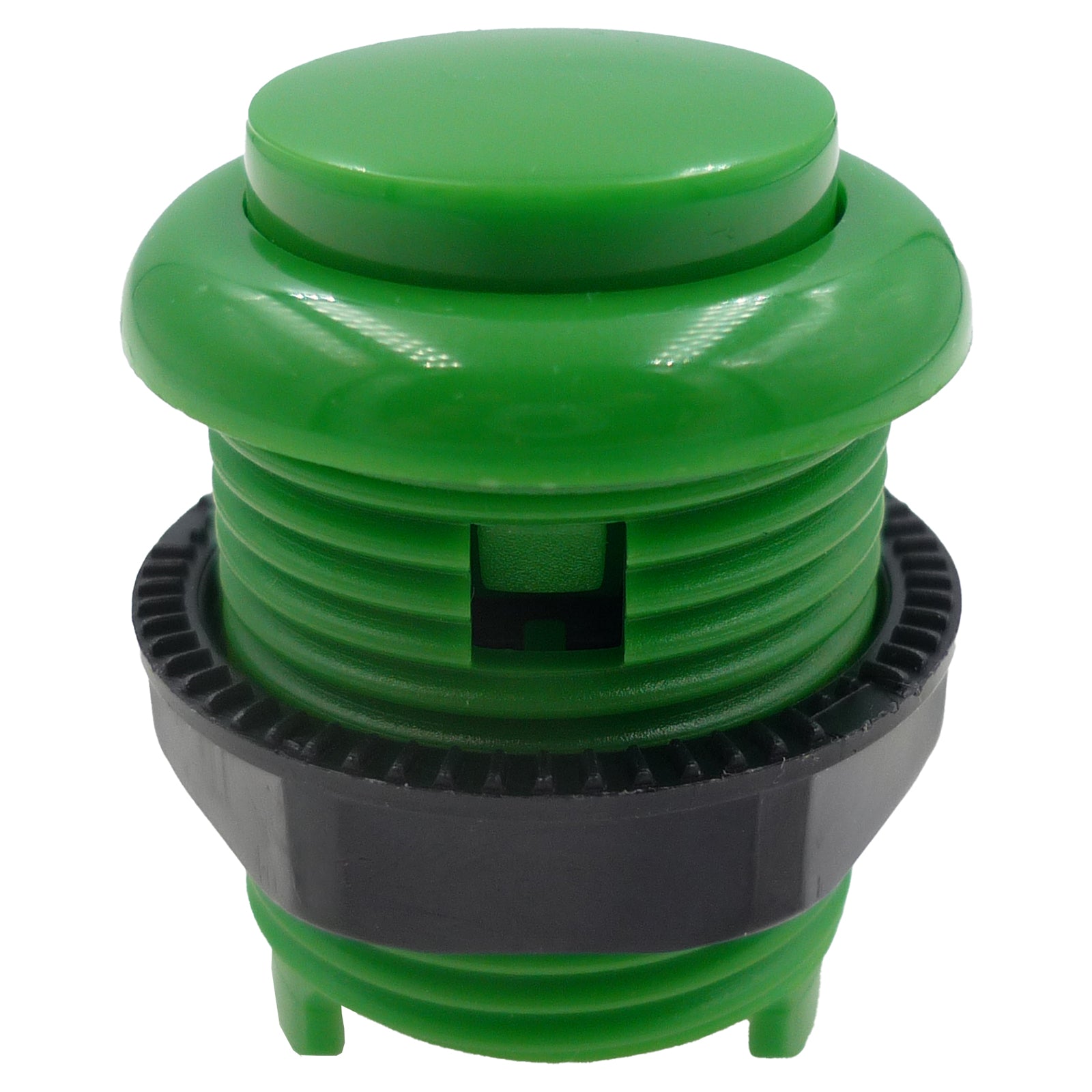

Baolian Convex Leaf Arcade Button
This arcade button mounts in a standard 30mm mounting hole, features a convex plunger, built in microswitch with 2.8mm terminals and comes supplied with a fixing ring. The 2 pin microswitch has 2.8mm terminals and is built into the body of the button and requires a ground wire and signal wire for connection. For connection, it does NOT matter which terminal you connect the ground and signal wire to.
Wiring Information:
This arcade button requires 2.8mm crimped wires for connection.
1 wire for ground connection (CO) and 1 wire for signal connection (NO).
What's Included:
1 x Baolian Convex Leaf Arcade Button
1 x Fixing Nut
Features:
- Mounts into wood or metal control panels
- Ideal for use within 3/4" wood control panels or metal panels
- Built-In microswitch
- Microswitch reliability tested to 10,000,000 cycles
- Horizontal attached microswitch with .110" (2.8mm) terminals
- Durable nylon material
- Convex plunger design
- Mounts in standard 30mm hole
