Insulated 12V 6.3mm LED Daisy Chain Harness with Molex for Illuminated Buttons

Insulated 12V 6.3mm LED Daisy Chain Harness with Molex for Illuminated Buttons

SKU:
EAN:
Regular price £7.15 GBP
Regular price Sale price £7.15 GBP
Sale Sold out
Tax included. Shipping calculated at checkout.

In stock

Features

  • 12V Wired PC Molex Connector
  • 32 x 6.3mm female crimps for positive (yellow)
  • 32 x 6.3mm female crimps for ground (black)
  • Female crimps approx. 13cm apart
  • Insulated crimps
  • Save a lot of time and effort
  • Long continuous harness measuring approx. 545cm

Specifications

Power: 12V
Crimp Size: 6.3mm
Length: Approx. 545cm

View full details

Description

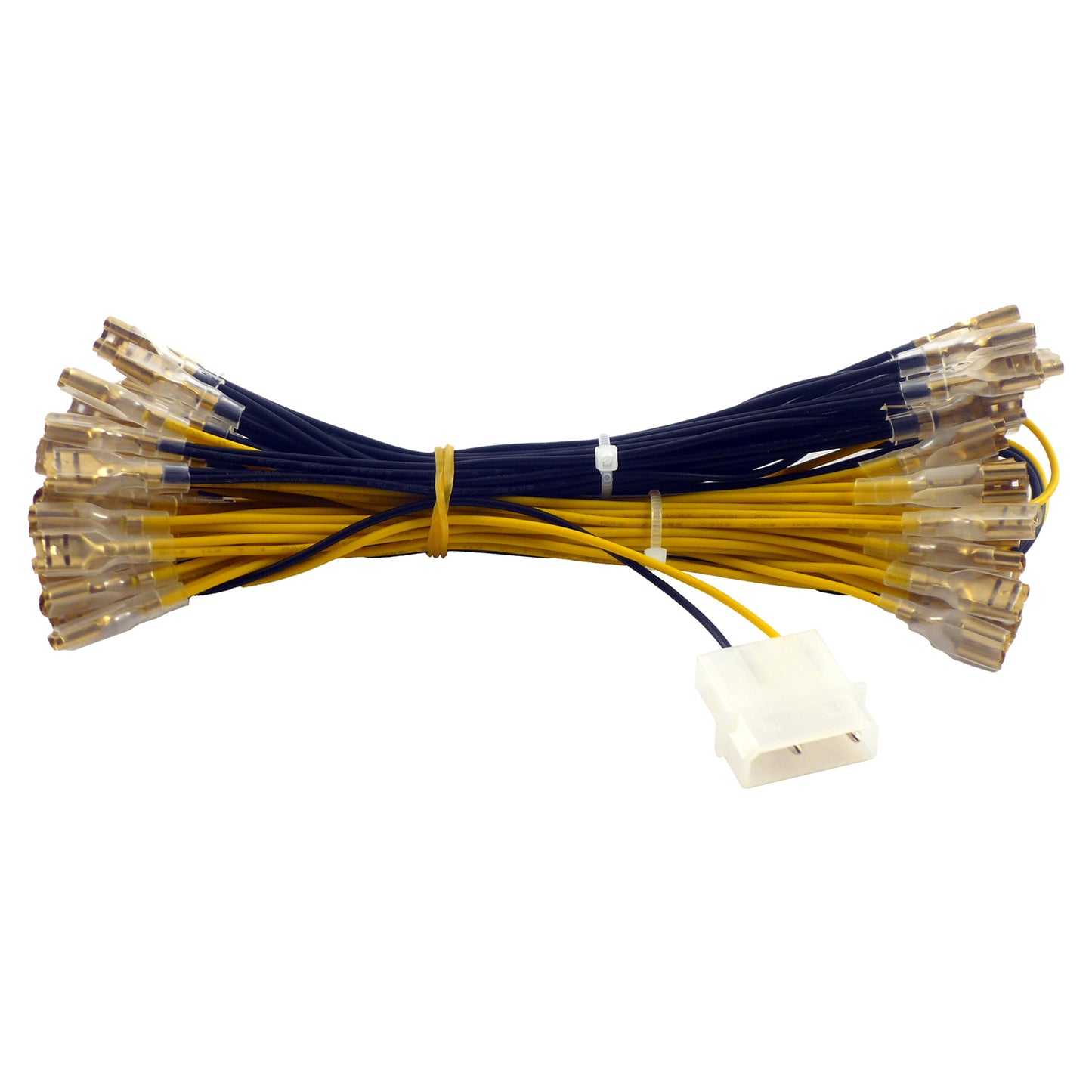

Insulated 12V 6.3mm LED Daisy Chain Harness with Molex for Illuminated Buttons

This LED harness features 32 x female crimps with insulated covers in one continuous length for power (yellow) and and 32 x female spade connectors with insulated covers in one continuous length for ground (black).

It is used for wiring 12v LED connectors on LED bulb holders for illuminated arcade buttons. The female spade connectors are spaced out 13cm apart on the power and ground daisy chains and length from the molex connector to the start of the dais chains is 147cm making the total length of the harness approx. 545cm long.

This can plug straight in to a spare molex connector on your PC power supply for easy integration. If you have a lot of connections to wire, this pre-crimped daisy chain harness can save you a lot of time and effort. This harness can also be cut to size and you can miss out connectors during wiring if you need extra span for your project. This daisy chain harness has 6.3mm female crimps that are ideal for connecting to the power and ground connectors on LED bulb holders on illuminated buttons with 6.3mm bulb holders.
